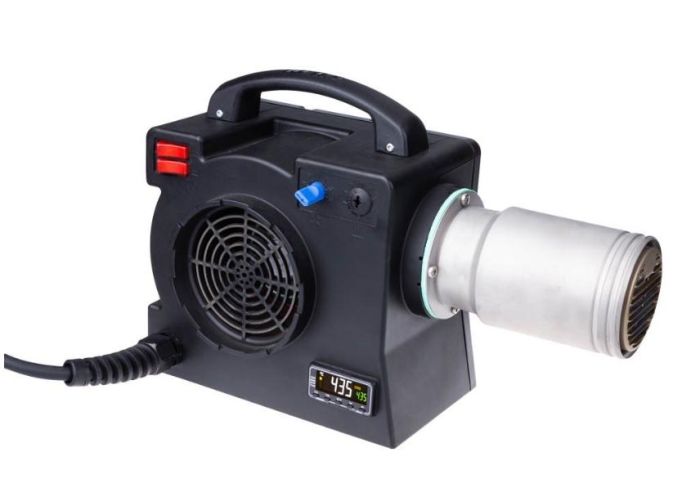

Compact Hot Air Blower (230V/3700W)

The BAK Compact Hot Air Blower is a professional-grade, Swiss-engineered industrial hot air blower built for continuous operation in high-demand production environments. Unlike portable hand tools designed for intermittent field use, the BAK Compact Hot Air Blower is a self-contained unit rated for the sustained, non-stop output that automated manufacturing lines, tunnel waterproofing crews, and industrial fabrication operations require. It delivers variable airflow and temperature settings in a single integrated package, with no external air supply or additional blower unit needed. Hot Air Tools® stocks the Compact Hot Air Blower at a competitive price, backed by the expert guidance and repair support that industrial teams have relied on since 1986.

The BAK Compact Hot Air Blower is widely recognized as the most powerful portable hot air blower in its class. At 3,700W with a maximum output temperature of 440 degrees C at full airflow, it delivers the kind of sustained heating capacity that high-volume industrial processes demand across shrinking, activating, drying, heating, and plastic welding applications. For manufacturing teams that need a compact hot air blower that can keep pace with production without requiring a break, a cooldown cycle, or a fixed installation, the BAK Compact Hot Air Blower is the benchmark the rest of the category is measured against.

Compact Hot Air Blower Technical Specifications

The BAK Compact Hot Air Blower runs at 230V and draws 3,700W, with a maximum airflow of 930 l/min at 20 degrees C and a maximum output temperature of 440 degrees C at peak airflow. Static pressure is rated at 450 Pa. The heating element tube diameter is 62/74 mm, and the unit dimensions are 325 x 136 x 180 mm. At 15 kg including cable, it is the most powerful portable hot air blower in its class while remaining compact enough to integrate into fixed production setups or move between workstations as needed.

The unit features an integrated digital controller for heat, on-board electronic tool protection, motor speed analysis, automatic cooling, and a main switch with independently lockable fan and heating controls. It carries CE certification and is built for continuous operation. Hot Air Tools® also stocks 230V/2300W and 230V/3100W versions of the Compact Hot Air Blower to fit production environments with different power supply configurations or output requirements.

• Voltage: 230V
• Frequency: 50/60 Hz
• Power Consumption: 3,700W
• Max. Temperature: 440°C
• Static Pressure: 450 Pa
• Controller: Integrated Digital Controller for Heat
• Certification: CE

Key Features of the Compact Hot Air Blower

The BAK Compact Hot Air Blower is engineered for high-volume manufacturing operations and demanding industrial environments where the heating system needs to run continuously without performance degradation, operator intervention, or unplanned downtime. From its on-board protection systems to its integrated digital controller and broad accessory compatibility, every design element targets the reliability and precision that industrial production processes cannot operate without. Key features include:

Compact Footprint for Fixed and Mobile Integration

At 325 x 136 x 180 mm, the BAK Compact Hot Air Blower lives up to its name without sacrificing output capacity. Its physical footprint is small enough to integrate directly into fixed production line setups, mount within automated process equipment, or move between workstations on a manufacturing floor without requiring structural modifications or dedicated installation space. For industrial operations where floor space and equipment layout are managed tightly, a portable hot air blower that delivers 3,700W of heating capacity in a package this size is a meaningful operational advantage over larger fixed blower systems that cannot be repositioned or repurposed across different production tasks.

3,700W Output Rated as the Strongest in Its Class

The BAK Compact Hot Air Blower delivers a maximum output temperature of 440 degrees C at full airflow, which is 1,472 degrees F, with an airflow capacity of up to 930 l/min. BAK's own product documentation describes the Compact Hot Air Blower as the most powerful portable hot air blower of its kind worldwide, a designation backed by more than six decades of industrial heating tool manufacturing. For high-volume production processes that require sustained, high-temperature output across extended operating periods, that class-leading power rating translates directly into faster cycle times, more consistent process temperatures, and higher throughput without the tool becoming the bottleneck.

That output is delivered continuously. The Compact Hot Air Blower is built for non-stop industrial operation, not the intermittent duty cycles of lighter tools. Production lines running shrink tunnels, drying chambers, or continuous plastic welding stations need a hot air blower that holds its output temperature consistently from the start of the shift to the end. The BAK Compact Hot Air Blower is built to that standard.

Broad Accessory Compatibility for Process-Specific Configuration

The Compact Hot Air Blower’s 62/74 mm heating element tube accepts a wide range of nozzle sizes, connection flanges, and stainless-steel filter accessories, allowing industrial teams to configure the blower output precisely for the process at hand. Different nozzle geometries redirect and concentrate airflow for shrinking, channeling heat into a tunnel system, directing output at a specific component on a production line, or coupling the blower to existing ductwork in a fixed installation.

That accessory range also means the Compact Hot Air Blower can serve multiple applications across a production facility without requiring a separate tool for each process. A single unit configured with the right nozzle and flange setup covers a broader range of industrial heating tasks than most fixed blower systems allow. For procurement and maintenance teams managing tool inventories across a manufacturing operation, that versatility reduces the number of specialized tools required while maintaining the performance each application demands.

On-Board Electronic Protection and Automatic Cooling

The Compact Hot Air Blower’s on-board electronic tool protection monitors the system during operation and intervenes before component damage occurs. Motor speed analysis runs continuously, giving the control system real-time data on blower performance so it can detect irregularities before they develop into failures. In a production environment where an unplanned equipment stoppage disrupts the entire line, that kind of active protection is not a premium feature. It is the baseline requirement for any industrial-grade hot air blower.

When the unit is powered down, the automatic cooling function continues moving air through the system until internal temperatures drop to safe levels, protecting the heating element and motor from residual heat damage after extended high-output operation. The main switch can also be locked independently for the fan and heating elements, which allows the operator to run the fan without heat during a cooldown sequence or to disable the heating element while maintaining airflow for a specific process step. Both functions are standard on the Compact Hot Air Blower, not optional add-ons.

Integrated Digital Controller for Precise Heat Management

The integrated digital controller gives the operator direct, precise control over temperature output without requiring an external controller, separate programming unit, or process engineer to adjust settings between jobs. Temperature and airflow are both adjustable through the unit's own interface, with the digital controller providing an accurate read-out of set and actual temperature so the operator can verify the blower is delivering the correct process heat before and during the run.

For industrial processes where temperature consistency directly affects product quality, adhesive activation, shrink uniformity, or weld integrity, the ability to set and confirm output temperature at the unit itself reduces process variability and removes a source of error that analog or externally controlled systems introduce. The Compact Hot Air Blower’s controller is built into the unit, so there are no additional components to calibrate, maintain, or replace separately.

Compact Hot Air Blower Applications

The BAK Compact Hot Air Blower's combination of class-leading output power, precise digital temperature control, broad accessory compatibility, and continuous-duty construction makes it a capable tool across a wide range of industrial heating applications. Whether the process runs on a fixed production line, in a tunnel construction environment, or across a fabrication shop floor, the Compact Hot Air Blower delivers the sustained, controllable heat output those applications require. Common applications include:

Industrial Drying Processes

Continuous drying of coatings, raw materials, surface treatments, and manufactured components is one of the Compact Hot Air Blower’s primary industrial applications. On automated production lines where parts or materials move through a drying stage at a fixed rate, the blower needs to maintain consistent output temperature and airflow across the full operating period without cycling down or requiring manual adjustment as line conditions change. The Compact Hot Air Blower’s continuous-duty rating and on-board electronic protection make it a dependable heat source for exactly that kind of fixed-station drying application.

For drying operations involving adhesives, coatings, or heat-activated surface treatments, the integrated digital controller allows the operator to set the process temperature precisely and verify that the blower is holding it throughout the run. In quality-controlled manufacturing environments where drying temperature affects cure quality, bond strength, or surface finish, that level of process control is what separates a production-grade industrial hot air blower from a general-purpose shop tool.

Tunnel Waterproofing

Tunnel waterproofing requires joining thick thermoplastic sheets and membranes under conditions that hand welding tools cannot sustain across large surface areas. The Compact Hot Air Blower’s high airflow capacity and maximum output temperature of 440 degrees C provide the sustained, high-powered heat needed to bring heavy thermoplastic waterproofing membranes up to welding temperature consistently across long seam runs in tunnel construction environments, where access is constrained, and the membrane joints need to form a reliable waterproof barrier that holds under ground pressure and moisture exposure.

The Compact Hot air Blower’s compact footprint allows it to be positioned and repositioned within the confined geometry of a tunnel construction site more readily than larger fixed blower systems. Its accessory compatibility enables the output to be directed precisely at the weld zone through the appropriate nozzle configuration, and its on-board protection systems keep the unit running through the extended operating periods that large-scale tunnel waterproofing projects demand.

Plastic Welding, Fabrication, and Shrink Applications

In plastic welding and fabrication, the Compact Hot Air Blower functions as a high-output air supply for welding thermoplastic materials, activating adhesives, and heat-forming plastic components across a range of industrial and commercial manufacturing applications. Its airflow range of 400 to 930 l/min covers the heat delivery requirements of both precision plastic welding work and broader fabric fabrication tasks where larger surface areas need consistent, even heat distribution to produce reliable bonds.

For shrink wrapping and packaging applications, the Compact Hot Air Blower’s output temperature range and precise airflow control allow the operator to dial in the exact combination of heat and airflow the shrink material requires for a clean, tight wrap without overheating or distorting the package. Adhesive removal and activation applications follow the same principle: the digital controller holds the output at the temperature the adhesive chemistry requires, and the adjustable airflow directs that heat where the process needs it. Across all of these applications, the BAK Compact Hot Air Blower delivers the output consistency and control that high-volume industrial processes depend on.

Why Buy the Compact Hot Air Blower from Hot Air Tools®

The BAK Compact Hot Air Blower is a serious industrial tool, and selecting the right configuration for your process matters. Hot Air Tools® has been supplying industrial teams across the US with BAK's Swiss-manufactured heating equipment since 1986, and our team will give you a direct answer on which wattage, nozzle configuration, and accessory setup fits your specific application before you buy. We stock the BAK Compact Hot Air Blower in 2300W, 3100W, and 3700W versions, and we can help you determine which one your process actually requires rather than defaulting to the highest-output option.

When your operation depends on a tool running continuously and reliably, you also need a supplier who stands behind it after the sale. Hot Air Tools®'s in-house repair capabilities mean your Compact Hot Air Blower gets serviced by a qualified technician who knows BAK equipment, with turnaround times that keep your production moving rather than waiting on international parts shipping. Add the BAK Compact Hot Air Blower to your cart today, or contact our team directly with any technical questions about your application, process requirements, or accessory compatibility.
